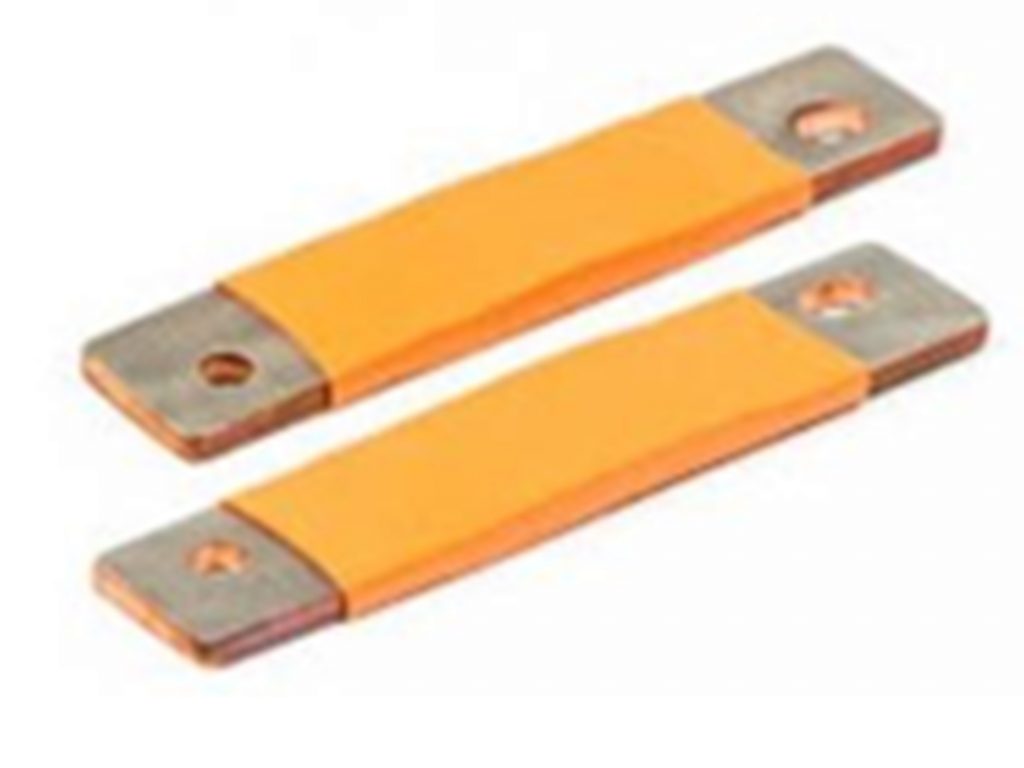

Flexible Tinned Copper Connectors Electrical Bus Bars
Application: Widely used in machinery, electric power railway, shipbuilding, spaceflight & aviation etc.

Type GBS
Place of Origin: Spain
Brand Name: Ray
Material: T2 Copper
Usage: CONNECTION
Copper strips: 99.9`)/oCu
Extensibility: 30`)/0

Use: Copper Foil Soft Connectors For Electrical Transformers Traction Motors & Electrical penal
Type: copper flexible bus bars
Current: Up to 5,000 A
Copper Foils Thickness: 0.1mm to 10mm or customized Width: 10mm to 150mm or customized
Length: up to 2000mm or customer’s request
conductivity: > 100 IACS

Tensile strength : Rm; 200N/ cm 2
Elongation: after break, > 35%
Resistivity: 0.017240 / mm 2 at 20 °C
Insulation: PVC Dipping Coated, PTE or PE heat shrink tube Epoxy Coated
Edge Shape : Full Round Edge, Semicircle, Square Corner.
