•Model NO.: RCS ‘Material: Copper
•Character: High Temperature Resistance ‘Production Process: Cold Pressing
•Interface Type: Standard
•Size: 0.5-1.5 MM2

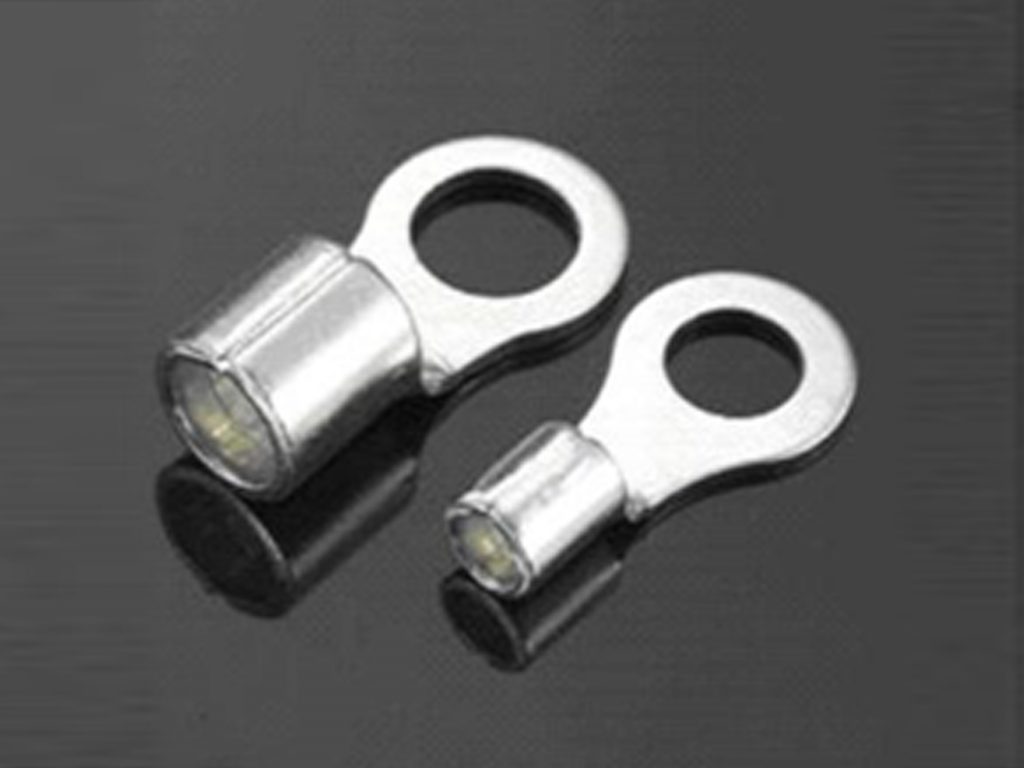

•Type: Single Hole Terminals
•Application: Conduct Electricity
•Species: Terminal “Purity: Copper>99.9%
•Stock: Warehouse in The UK, SPAIN
•Transport Package: 100 PCS/Pack / Customized ‘Origin: SPAIN
Product Specifications:
Wire Range 0.5-1.5 mm2 A.W.G: (22-16 ) Max current = 19A
| Model No | Stud Size | Dimension mm |
| Metric | American | d2 | W | F | L | B | D | d1 | T | |
| RCS 1.25-3 | 3 | #4 | 3.2 | 5.5 | 5.0 | 13 | ||||
| RCS 1.25-3.5 | 3.5 | #6 | 3.7 | 5.5 | 5.0 | 13 | ||||
| RCS 1.25-3.5 | 3.5 | #6 | 3.7 | 6.6 | 6.3 | 14.4 | ||||
| RCS 1.25-4 | 3.5 | #6 | 3.7 | 7.2 | 7.0 | 15.5 | ||||
| RCS 1.25-4 | 4 | #8 | 4.3 | 6.6 | 6.3 | 14.4 | ||||
| RCS 1.25-4 | 4 | #8 | 4.3 | 8.0 | 7.0 | 15.8 | ||||
| RCS 1.25-5 | 5 | #10 | 5.3 | 8.0 | 7.0 | 15.8 | ||||
| RCS 1.25-5 | 5 | #10 | 5.3 | 9.5 | 8.0 | 17.5 | ||||
| RCS 1.25-5 | 5 | #10 | 5.3 | 11.6 | 11.0 | 21.8 | ||||
| RCS 1.25-6 | 6 | 1/4″ | 6.4 | 10.2 | 8.0 | 17.5 | ||||
| RCS 1.25-6 | 6 | 1/4″ | 6.4 | 11.6 | 11.0 | 21.8 | ||||
| RCS 1.25-8 | 8 | 5/16″ | 8.4 | 11.6 | 11.0 | 21.8 | ||||
| RCS 1.25-8 | 8 | 5/16″ | 8.4 | 14.5 | 18.0 | 25.0 | ||||
| RCS 1.25-10 | 10 | 3/8″ | 10.5 | 13.6 | 13.9 | 25.5 | ||||
| RCS 1.25-10 | 10 | 3/8″ | 10.5 | 19.2 | 16 | 30.4 | ||||
| RCS 1.25-12 | 12 | 1/2″ | 13.0 | 18.5 | 16 | 30.4 | 4.8 | 3.4 | 1.7 | 0.75 |
| RCS 2-3 | 3 | #4 | 3.2 | 6.6 | 4.8 | 13 | ||||
| RCS 2-3.5 | 3.5 | #6 | 3.7 | 6.6 | 4.8 | 13 | ||||
| RCS M 2-3.5 | 3.5 | #6 | 3.7 | 6.6 | 7.0 | 15 | ||||
| RCS L 2-3.5 | 3.5 | #6 | 3.7 | 8.5 | 7.8 | 17.5 | ||||
| RCS 2-4 | 4 | #8 | 4.3 | 6.6 | 7.0 | 15 | ||||
| RCS L 2-4 | 4 | #8 | 4.3 | 8.6 | 7.8 | 17.5 | ||||
| RCS 2-5 | 5 | #10 | 5.3 | 8.6 | 7.8 | 17.5 | ||||
| RCS L 2-5 | 5 | #10 | 5.3 | 9.5 | 7.8 | 17.5 | ||||
| RCS 2-6 | 6 | 1/4″ | 5.3 | 10.2 | 10.0 | 20.5 | ||||
| RCS L2-6 | 6 | 1/4″ | 6.4 | 12.0 | 11.0 | 21.8 | 4.8 | 4.1 | 2.3 | 0.8 |
